Borunte

Swing-Arm Robots

BRP series Swing-arm robot is applicable to all types of horizontal injection machine of 30~280T for take-out products and sprues. It has ranges of model BRP650V and BRP850WV, with two types of arms, single stage and telescopic type. The single function is to clamp products, and the full function is to take-out products and sprues. After installed this robot, the productivity will be increased 10~30%, reduce defective rate, ensure safety of operators, reduce manpower and accurately control the output to reduce waste.

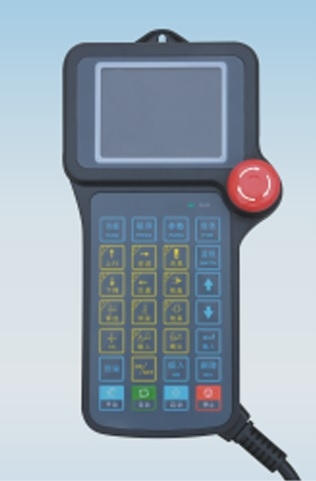

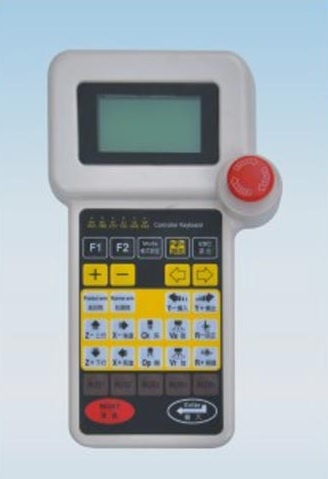

Controller

  • Palm controller with dialogue type operation interface, the display language is changeable, easy for learn
  • Eight sets built-in programs, with L/U take out function
  • Applicable to all types of products take out

Technical data Borunte BRP Series

Siųsti užklausą

Economic AC Servo Traversing Robot

BRA700/900 Series traversing robot arm is applicable to all types of horizontal injection machine ranges of 100~300 for take-out products and sprues. Vertical arm is telescopic type, with product arm and runner arm, for two plate or three plate mold products take out. Traverse axis driven by AC servo motor. After installed this robot, the productivity will be increased 10~30%, reduce defective rate, ensure safety of operators, reduce manpower and accurately control the output to reduce waste.

Controller

  • Palm controller with dialogue type operation interface, the display language is changeable, easy for learn
  • Eight sets built-in programs, with L/U take out function
  • Applicable to all types of products take out



Technical data Borunte BRA Series

Siųsti užklausą

High precision AC Servo Traversing Robot

 BRB600/700 Series is applicable to all types of horizontal injection machine ranges of 60~200T for take-out products and sprues. Vertical arm is single type, with product arm and runner arm two types, suitable for two plate or three plate mold products take out. Traverse axis driven by AC servo motor. After installed this robot, the productivity will be increased 10~30%, reduce defective rate, ensure safety operators, reduce manpower and accurately control the output to reduce waste.

Controller

  • Palm controller with dialogue type operation interface, the display language is changeable, easy for learn
  • Eight sets built-in programs, with L/U take out function
  • Applicable to all types of products take out



Technical data Borunte BRB Series

Siųsti užklausą

High precision Two-axis AC Servo Traversing Robot-Single Stage

BRB800 Series is applicable to all types of horizontal injection machine ranges of 100~250T for take-out products and sprues. Vertical arm is single stage, suitable for two plate mold products take out. Traverse axis and vertical axis driven by AC servo motor. After installed this robot, the productivity will be increased 10~30%, reduce defective rate, ensure safety of operators, reduce manpower and accurately control the output to reduce waste.

Controller

  • Palm controller with dialogue type operation interface, the display language is changeable, easy for learn
  • Eight sets built-in programs, with L/U take out function
  • Applicable to all types of products take out.
  • Traverse stroke can be used to place products in multiple points (99 points at most) to stracking products.

Technical data Borunte BRB800 Series

Siųsti užklausą

High precision Two-axis AC Servo Traversing Robot-Telescopic Type

  BRB800~1200 Series is applicable to all types of horizontal injection machine ranges of 100~650T for take-out products and sprues. Vertical arm is telescopic type, suitable for two plate mold products take out. Traverse axis and vertical axis driven by AC servo motor. After installed this robot, the productivity will be increased 10~30% , reduce defective rate, ensure safety of operators, reduce manpower and accurately control the output to reduce waste.

Controller

  • Palm controller with dialogue type operation interface, the display language is changeable, easy for learn
  • Eight sets built-in programs, with L/U take out function
  • Applicable to all types of products take out.
  • Traverse stroke can be used to place products in multiple points (99 points at most) to stracking products.

Technical data Borunte BRB1000 Series

Siųsti užklausą

High Precision Two-axis/Three-axis/Five-axis AC Servo Traversing Robot

 BRC1400~2200 Series is applicable to all types of horizontal injection machine ranges of 650~2200T for take-out products and sprues. Vertical arm is telescopic type, with single arm and double arms, suitable for three plate mold products take out. Each axis can be driven by AC servo motor. After installed this robot, reduce manpower and accurately control the output to reduce waste.

Controller

  • Palm controller with dialogue type operation interface, the display language is changeable, easy for learn
  • Eight sets built-in programs, with L/U take out function
  • Applicable to all types of products take out.
  • Traverse stroke can be used to place products in multiple points (99 points at most) to stracking products.

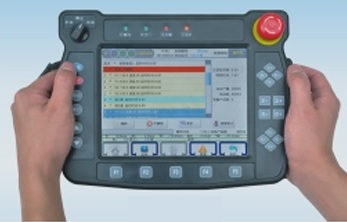

  • 8 inch color touch screen
  • Micro-computer control system, strong ability of anti-interfence, stable production and fast counting
  • Each axis with the function of acceleration and deceleration
  • Moulding memorizing function, it can be set fast while exchanging the mould, convenient for production and interease efficiency

Technical data Borunte BRC Series

Siųsti užklausą

Three-axis/Five-axis AC Servo Traversing Robot-Single Stage

BRR Series is applicable to all types of horizontal injection machine ranges of 30~320T for take-out products and sprues. Vertical arm is single stage. With types of three-axis and five-axis driven by AC servo motor. Products take-out at super high-speed (0.8sec) and dry cycle time within 5 seconds, applicable to take-out products with the function of mold labeling and mold inserting.

Controller

  • 8 inch color touch screen
  • Micro-computer control system, strong ability of anti-interfence, stable production and fast counting
  • Each axis with the function of acceleration and deceleration
  • Moulding memorizing function, it can be set fast while exchanging the mould, convenient for production and interease efficiency

Technical data Borunte BRR Series

Siųsti užklausą

Three-axis/Five-axis AC Servo Traversing Robot-Telescopic Type

BRR Series is applicable to all types of horizontal injection machine ranges of 100~650T for take-out products and sprues. Vertical arm is telescopic stage. Full AC servo motor driven on each axis. Products take-out at super high-speed (0.8sec.) and dry cycle time within 5 seconds, applicable to take-out products with short forming cycle or complex automatic. Also with the function of mold labeling and mold inserting.

Controller

  • 8 inch color touch screen
  • Micro-computer control system, strong ability of anti-interfence, stable production and fast counting
  • Each axis with the function of acceleration and deceleration
  • Moulding memorizing function, it can be set fast while exchanging the mould, convenient for production and interease efficiency

Technical data Borunte BRR1000 Series

Siųsti užklausą

AC Servo Axial-Traverse Beam Robot

  BRV Series Robot is applicable to all types of horizontal injection machine of 50~400T for take-out products. The installation direction is different from traditional beam robot, products and sprues are placed at the end of IMM. It has single stage and telescopic type ; It can be added a sub-arm for 3-plates mold to grip products and sprue at the same time, vertical stroke:800-1000mm. Install BRV robot can save 30~40% room to allow better utilization of production space; Furthermore, the productivity will be increased 20~30%, reduce defective rate, ensure safety of operators, reduce manpower and accurately control the output to reduce waste.

Controller

  • 8 inch color touch screen
  • Micro-computer control system, strong ability of anti-interfence, stable production and fast counting
  • Each axis with the function of acceleration and deceleration
  • Moulding memorizing function, it can be set fast while exchanging the mould, convenient for production and interease efficiency

Technical data Borunte BRTN Series

Siųsti užklausą

CNC AC Servo Large Beam Robot

  BRV Series Robot is applicable to all types of horizontal injection machine of 50~400T for take-out products. The installation direction is different from traditional beam robot, products and sprues are placed at the end of IMM. It has single stage and telescopic type ; It can be added a sub-arm for 3-plates mold to grip products and sprue at the same time, vertical stroke:800-1000mm. Install BRV robot can save 30~40% room to allow better utilization of production space; Furthermore, the productivity will be increased 20~30%, reduce defective rate, ensure safety of operators, reduce manpower and accurately control the output to reduce waste.

Controller

  • Palm controller with dialogue type operation interface, the display language is changeable, easy for learn
  • Eight sets built-in programs, with L/U take out function
  • Applicable to all types of products take out.
  • Traverse stroke can be used to place products in multiple points (99 points at most) to stracking products.

Technical data Borunte BRV Series

Siųsti užklausą
